JYKK Snowscoot Non-Through Bushing Set | 13mm Studs

Refresh the connection between your Snowscoot frame and boards with this genuine JYKK non-through rubber bushing set.

Designed for JYKK Snowscoot models from 2015 onward, this version uses 13mm frame-side studs and works with the SAS (Smart Attachment System). Check compatibility with your frame before ordering.

Unlike a through-bolt bushing, the non-through design has no single bolt running through the center of the rubber. It allows movement in every direction, absorbs vibration and lets the boards flex naturally. The medium-firmness rubber offers a balanced feel for a wide range of riders and snow conditions.

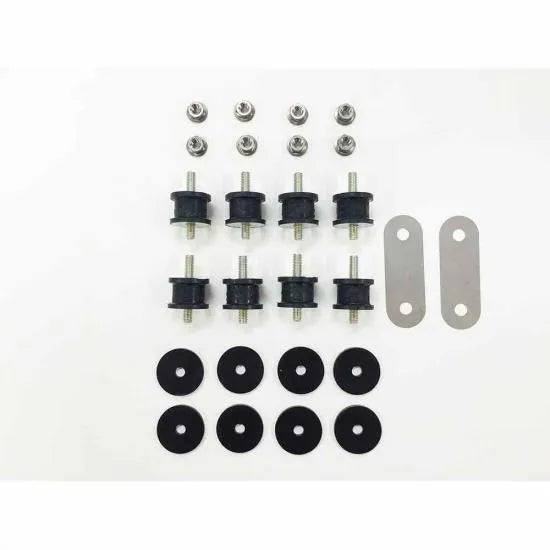

Set contents

• 8 non-through rubber bushings
• 8 PE washers
• 8 stainless steel nuts
• 2 stopper plates

One complete set for one Snowscoot.

Compatibility and installation

• Use non-through bushings as a complete set. Do not mix them with through-bolt bushings.
• Apply grease to the board-side threads to help prevent seizure.
• On JYKK Snowscoot frames, remove the flex support washers and use the supplied stainless steel nuts.
• Fit the stopper plates at the rear mounting points of the front board as specified in the installation instructions. Handle the plates carefully; their thin edges can be sharp.
• Rubber components are consumable parts. Inspect them regularly and replace them if they show deterioration.

If you are unsure about compatibility, please contact us before ordering with your model name and photos of the board mounting area.

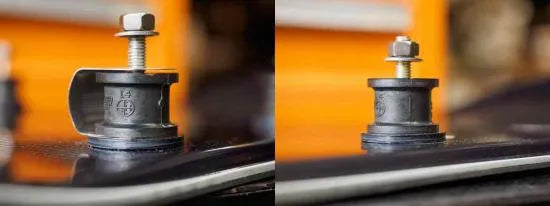

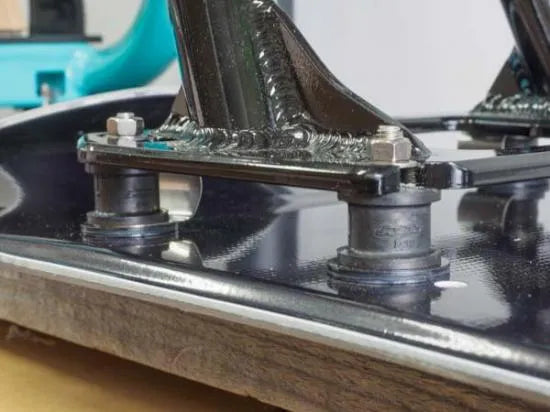

Installation photos are examples. Frame and boards are not included.

Learn more about how bushings affect your ride, choosing 13mm or 19mm studs, and seasonal maintenance in our JYKK bushing guide.
